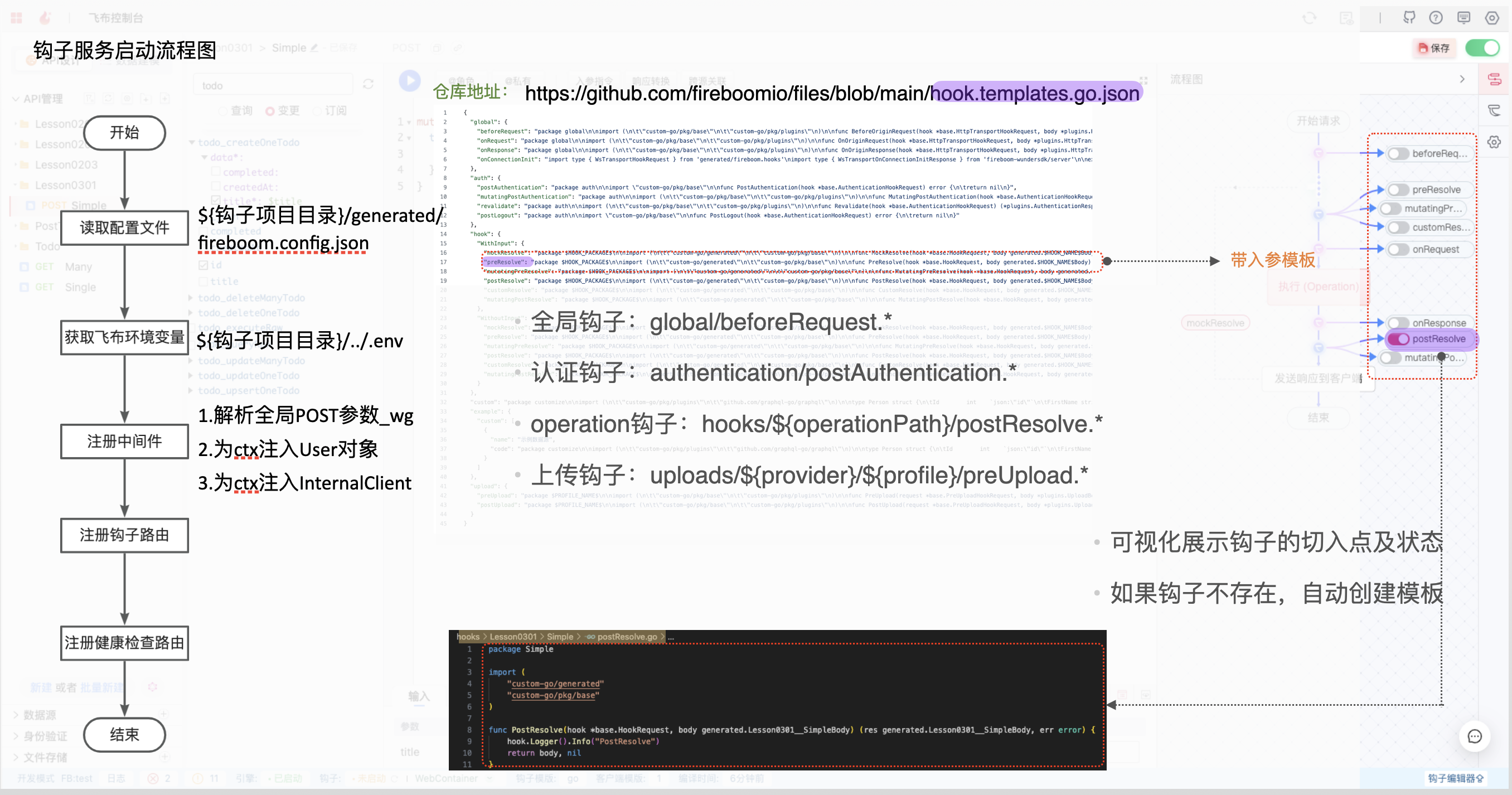

# 启动钩子 任何语言实现的Fireboom钩子，本质上都是一个WEB服务，其遵循Fireboom规范注册对应路由。 任意语言的钩子服务启动时，都遵循如下流程。
{% hint style="info" %} Fireboom 同时只兼容一种语言的钩子！！！ {% endhint %} ## 读取配置文件 钩子服务依赖Fireboom服务的配置：`exported/generated/fireboom.config.json` 。 为了便于读取，且减少冗余。Fireboom为该文件创建了一个软连接，并生成到开启钩子的指定路径，例如：`custom-go/generated/fireboom.config.json` 。 其中，包含钩子启动所依赖的大部分信息，如 * 钩子监听端口：`serverOptions.listen.port` * S3配置信息：`s3UploadConfiguration` * ... 读取该文件的代码如下： {% tabs %} {% tab title="golang" %} {% code title="pkg/types/configure.go" %} ```go var configJsonPath = filepath.Join("generated", "fireboom.config.json") func init() { _ = utils.ReadStructAndCacheFile(configJsonPath, &WdgGraphConfig) } ``` {% endcode %} {% endtab %} {% endtabs %} ## 读取环境变量 钩子服务还依赖Fireboom服务的环境变量，使用相对路径读取： `../.env`。 {% tabs %} {% tab title="golang" %} {% code title="server/fireboom\_server.go" %} ```go const nodeEnvFilepath = "../.env" func init() { _ = godotenv.Overload(nodeEnvFilepath) ``` {% endcode %} {% endtab %} {% endtabs %} ## 注册中间件 1，解析Fireboom调用钩子时携带的全局参数 `_wg` ```json "__wg": { # 全局参数 "clientRequest": { # 原始客户端请求，即请求9991端口的request对象 "method": "GET", "requestURI": "/operations/Weather?code=beijing", "headers": { "Accept": "application/json", "Content-Type": "application/json" } }, "user": { # （可选）授权用户的信息 "userID": "1", "roles": ["user"] } } ``` 2，为上下文ctx注入`User`对象，用于获取登录用户的信息 3，为上下文ctx注入`InternalClient`对象（用于[内部调用](https://docs.fireboom.io/jin-jie-gou-zi-ji-zhi/nei-bu-tiao-yong)） {% tabs %} {% tab title="golang" %} {% code title="server/start.go" fullWidth="true" %} ```go e.Use(func(next echo.HandlerFunc) echo.HandlerFunc { return func(c echo.Context) error { if c.Request().Method == http.MethodGet { return next(c) } // 1，解析Fireboom调用时携带的全局参数 _wg var body base.BaseRequestBody err := utils.CopyAndBindRequestBody(c.Request(), &body) if err != nil { return err } if body.Wg.ClientRequest == nil { body.Wg.ClientRequest = &base.ClientRequest{ Method: c.Request().Method, RequestURI: c.Request().RequestURI, Headers: map[string]string{}, } } else { for name, value := range body.Wg.ClientRequest.Headers { c.Request().Header.Set(name, value) } } reqId := c.Request().Header.Get("x-request-id") internalClient := base.InternalClientFactoryCall(map[string]string{"x-request-id": reqId}, body.Wg.ClientRequest, body.Wg.User) internalClient.Queries = internalQueries internalClient.Mutations = internalMutations brc := &base.BaseRequestContext{ Context: c, //2，为上下文ctx注入User对象，用于获取登录用户的信息 User: body.Wg.User, // 3,为上下文ctx注入InternalClient对象 InternalClient: internalClient, } return next(brc) } }) ``` {% endcode %} {% endtab %} {% endtabs %} ## 注册钩子 Fireboom中有各种类型的钩子，主要包括： [operation-gou-zi](https://docs.fireboom.io/jin-jie-gou-zi-ji-zhi/operation-gou-zi "mention") [shen-fen-yan-zheng-gou-zi](https://docs.fireboom.io/jin-jie-gou-zi-ji-zhi/shen-fen-yan-zheng-gou-zi "mention") [graphql-gou-zi](https://docs.fireboom.io/jin-jie-gou-zi-ji-zhi/graphql-gou-zi "mention") [wen-jian-shang-chuan-gou-zi](https://docs.fireboom.io/jin-jie-gou-zi-ji-zhi/wen-jian-shang-chuan-gou-zi "mention") 每个钩子开启后，都会生成对应模板，并按照规范注册路由。 ### 开启钩子 开启钩子很简单，有两种方法： * 主功能区-> 概览面板 ，比较直观的展示了钩子所处的注入点，见上图 * 主功能区-> 钩子面板 ，简单罗列了所有的钩子 所有钩子都有约定的目录结构，各类型钩子对应目录： ``` ├─ custom-* │ ├─ auth # 授权钩子目录 │ │ ├─ mutatingPostAuthentication.* │ │ ├─ postAuthentication.* │ │ ├─ postLogout.* │ │ └─ revalidate.* │ ├─ customize # graphql 钩子目录 │ │ ├─ gql1.* │ ├─ global # OPERATION全局钩子目录 │ │ ├─ beforeRequest.* │ │ ├─ onRequest.* │ │ └─ onResponse.* │ ├─ hooks # OPERATION 局部钩子目录 │ │ └─ Simple │ │ ├─ customResolve.* │ │ ├─ mockResolve.* │ │ ├─ mutatingPostResolve.* │ │ ├─ mutatingPreResolve.* │ │ ├─ postResolve.* │ │ └─ preResolve.* │ ├─ functions # 函数钩子目录 │ │ └─ fun1.* │ ├─ proxys # 代理钩子目录 │ │ └─ p1.* │ └─ uploads # 上传文件钩子目录 │ └─ tengxunyun │ └─ avatar │ ├─ postUpload.* │ └─ preUpload.* ``` 以golang钩子为例， 上图中的Simple OPERATION的 `postResolve` 钩子，对应 `custom-go/hooks/Simple/postResolve.go` 文件。 开启钩子时，若对应钩子的文件不存在，则会从github仓库对应文件中获取钩子模板，并在对应目录创建默认钩子文件。 所有类型钩子的默认模板，都存储在如下仓库： * golang： * nodejs： 其中golang钩子模板仓库如下： ```json { "global": { "beforeRequest": "package global\n\nimport (\n\t\"custom-go/pkg/base\"\n\t\"custom-go/pkg/plugins\"\n)\n\nfunc BeforeOriginRequest(hook *base.HttpTransportHookRequest, body *plugins.HttpTransportBody) (*base.ClientRequest, error) {\n\treturn body.Request, nil\n}\n", "onRequest": "package global\n\nimport (\n\t\"custom-go/pkg/base\"\n\t\"custom-go/pkg/plugins\"\n)\n\nfunc OnOriginRequest(hook *base.HttpTransportHookRequest, body *plugins.HttpTransportBody) (*base.ClientRequest, error) {\n\treturn body.Request, nil\n}\n", "onResponse": "package global\n\nimport (\n\t\"custom-go/pkg/base\"\n\t\"custom-go/pkg/plugins\"\n)\n\nfunc OnOriginResponse(hook *base.HttpTransportHookRequest, body *plugins.HttpTransportBody) (*base.ClientResponse, error) {\n\treturn body.Response, nil\n}\n", "onConnectionInit": "import type { WsTransportHookRequest } from 'generated/fireboom.hooks'\nimport type { WsTransportOnConnectionInitResponse } from 'fireboom-wundersdk/server'\n\nexport default async function onConnectionInit(hook: WsTransportHookRequest): Promise {\n return {\n payload: {\n // your code here\n }\n }\n}" }, "auth": { "postAuthentication": "package auth\n\nimport \"custom-go/pkg/base\"\n\nfunc PostAuthentication(hook *base.AuthenticationHookRequest) error {\n\treturn nil\n}", "mutatingPostAuthentication": "package auth\n\nimport (\n\t\"custom-go/pkg/base\"\n\t\"custom-go/pkg/plugins\"\n)\n\nfunc MutatingPostAuthentication(hook *base.AuthenticationHookRequest) (*plugins.AuthenticationResponse, error) {\n\treturn &plugins.AuthenticationResponse{User: hook.User, Status: \"ok\"}, nil\n}\n", "revalidateAuthentication": "package auth\n\nimport (\n\t\"custom-go/pkg/base\"\n\t\"custom-go/pkg/plugins\"\n)\n\nfunc Revalidate(hook *base.AuthenticationHookRequest) (*plugins.AuthenticationResponse, error) {\n\treturn nil, nil\n}", "postLogout": "package auth\n\nimport \"custom-go/pkg/base\"\n\nfunc PostLogout(hook *base.AuthenticationHookRequest) error {\n\treturn nil\n}" }, "hook": { // operation局部钩子 // 带入参的OPERATION "WithInput": { "mockResolve": "package $HOOK_PACKAGE$\n\nimport (\n\t\"custom-go/generated\"\n\t\"custom-go/pkg/base\"\n)\n\nfunc MockResolve(hook *base.HookRequest, body generated.$HOOK_NAME$Body) (res generated.$HOOK_NAME$Body, err error) {\n\thook.Logger().Info(\"MockResolve\")\n\treturn body, nil\n}\n", "preResolve": "package $HOOK_PACKAGE$\n\nimport (\n\t\"custom-go/generated\"\n\t\"custom-go/pkg/base\"\n)\n\nfunc PreResolve(hook *base.HookRequest, body generated.$HOOK_NAME$Body) (res generated.$HOOK_NAME$Body, err error) {\n\thook.Logger().Info(\"PreResolve\")\n\treturn body, nil\n}\n", "mutatingPreResolve": "package $HOOK_PACKAGE$\n\nimport (\n\t\"custom-go/generated\"\n\t\"custom-go/pkg/base\"\n)\n\nfunc MutatingPreResolve(hook *base.HookRequest, body generated.$HOOK_NAME$Body) (res generated.$HOOK_NAME$Body, err error) {\n\thook.Logger().Info(\"MutatingPreResolve\")\n\treturn body, nil\n}\n", "postResolve": "package $HOOK_PACKAGE$\n\nimport (\n\t\"custom-go/generated\"\n\t\"custom-go/pkg/base\"\n)\n\nfunc PostResolve(hook *base.HookRequest, body generated.$HOOK_NAME$Body) (res generated.$HOOK_NAME$Body, err error) {\n\thook.Logger().Info(\"PostResolve\")\n\treturn body, nil\n}\n", "customResolve": "package $HOOK_PACKAGE$\n\nimport (\n\t\"custom-go/generated\"\n\t\"custom-go/pkg/base\"\n)\n\nfunc CustomResolve(hook *base.HookRequest, body generated.$HOOK_NAME$Body) (res generated.$HOOK_NAME$Body, err error) {\n\thook.Logger().Info(\"CustomResolve\")\n\treturn body, nil\n}\n", "mutatingPostResolve": "package $HOOK_PACKAGE$\n\nimport (\n\t\"custom-go/generated\"\n\t\"custom-go/pkg/base\"\n)\n\nfunc MutatingPostResolve(hook *base.HookRequest, body generated.$HOOK_NAME$Body) (res generated.$HOOK_NAME$Body, err error) {\n\thook.Logger().Info(\"MutatingPostResolve\")\n\treturn body, nil\n}\n" }, // 不带入参的OPERATION "WithoutInput": { "mockResolve": "package $HOOK_PACKAGE$\n\nimport (\n\t\"custom-go/generated\"\n\t\"custom-go/pkg/base\"\n)\n\nfunc MockResolve(hook *base.HookRequest, body generated.$HOOK_NAME$Body) (res generated.$HOOK_NAME$Body, err error) {\n\thook.Logger().Info(\"MockResolve\")\n\treturn body, nil\n}\n", "preResolve": "package $HOOK_PACKAGE$\n\nimport (\n\t\"custom-go/generated\"\n\t\"custom-go/pkg/base\"\n)\n\nfunc PreResolve(hook *base.HookRequest, body generated.$HOOK_NAME$Body) (res generated.$HOOK_NAME$Body, err error) {\n\thook.Logger().Info(\"PreResolve\")\n\treturn body, nil\n}\n", "mutatingPreResolve": "package $HOOK_PACKAGE$\n\nimport (\n\t\"custom-go/generated\"\n\t\"custom-go/pkg/base\"\n)\n\nfunc MutatingPreResolve(hook *base.HookRequest, body generated.$HOOK_NAME$Body) (res generated.$HOOK_NAME$Body, err error) {\n\thook.Logger().Info(\"MutatingPreResolve\")\n\treturn body, nil\n}\n", "postResolve": "package $HOOK_PACKAGE$\n\nimport (\n\t\"custom-go/generated\"\n\t\"custom-go/pkg/base\"\n)\n\nfunc PostResolve(hook *base.HookRequest, body generated.$HOOK_NAME$Body) (res generated.$HOOK_NAME$Body, err error) {\n\thook.Logger().Info(\"PostResolve\")\n\treturn body, nil\n}\n", "customResolve": "package $HOOK_PACKAGE$\n\nimport (\n\t\"custom-go/generated\"\n\t\"custom-go/pkg/base\"\n)\n\nfunc CustomResolve(hook *base.HookRequest, body generated.$HOOK_NAME$Body) (res generated.$HOOK_NAME$Body, err error) {\n\thook.Logger().Info(\"CustomResolve\")\n\treturn body, nil\n}\n", "mutatingPostResolve": "package $HOOK_PACKAGE$\n\nimport (\n\t\"custom-go/generated\"\n\t\"custom-go/pkg/base\"\n)\n\nfunc MutatingPostResolve(hook *base.HookRequest, body generated.$HOOK_NAME$Body) (res generated.$HOOK_NAME$Body, err error) {\n\thook.Logger().Info(\"MutatingPostResolve\")\n\treturn body, nil\n}\n" } }, // graphql 钩子 "custom": "package customize\n\nimport (\n\t\"custom-go/pkg/plugins\"\n\t\"github.com/graphql-go/graphql\"\n)\n\ntype Person struct {\n\tId int `json:\"id\"`\n\tFirstName string `json:\"firstName\"`\n\tLastName string `json:\"lastName\"`\n}\n\nvar (\n\tpersonType = graphql.NewObject(graphql.ObjectConfig{\n\t\tName: \"Person\",\n\t\tDescription: \"A person in the system\",\n\t\tFields: graphql.Fields{\n\t\t\t\"id\": &graphql.Field{\n\t\t\t\tType: graphql.Int,\n\t\t\t},\n\t\t\t\"firstName\": &graphql.Field{\n\t\t\t\tType: graphql.String,\n\t\t\t},\n\t\t\t\"lastName\": &graphql.Field{\n\t\t\t\tType: graphql.String,\n\t\t\t},\n\t\t},\n\t})\n\n\tfields = graphql.Fields{\n\t\t\"person\": &graphql.Field{\n\t\t\tType: personType,\n\t\t\tDescription: \"Get Person By ID\",\n\t\t\tArgs: graphql.FieldConfigArgument{\n\t\t\t\t\"id\": &graphql.ArgumentConfig{\n\t\t\t\t\tType: graphql.Int,\n\t\t\t\t},\n\t\t\t},\n\t\t\tResolve: func(params graphql.ResolveParams) (interface{}, error) {\n\t\t\t\t_ = plugins.GetGraphqlContext(params)\n\t\t\t\tid, ok := params.Args[\"id\"].(int)\n\t\t\t\tif ok {\n\t\t\t\t\ttestPeopleData := []Person{\n\t\t\t\t\t\t{Id: 1, FirstName: \"John\", LastName: \"Doe\"},\n\t\t\t\t\t\t{Id: 2, FirstName: \"Jane\", LastName: \"Doe\"},\n\t\t\t\t\t}\n\t\t\t\t\tfor _, p := range testPeopleData {\n\t\t\t\t\t\tif p.Id == id {\n\t\t\t\t\t\t\treturn p, nil\n\t\t\t\t\t\t}\n\t\t\t\t\t}\n\t\t\t\t}\n\t\t\t\treturn nil, nil\n\t\t\t},\n\t\t},\n\t}\n\n\trootQuery = graphql.ObjectConfig{Name: \"RootQuery\", Fields: fields}\n\n\t^$CUSTOMIZE_NAME$_schema, _ = graphql.NewSchema(graphql.SchemaConfig{Query: graphql.NewObject(rootQuery)})\n)\n", "example": { "custom": [ { "name": "示例数据源", "code": "package customize\n\nimport (\n\t\"custom-go/pkg/plugins\"\n\t\"github.com/graphql-go/graphql\"\n)\n\ntype Person struct {\n\tId int `json:\"id\"`\n\tFirstName string `json:\"firstName\"`\n\tLastName string `json:\"lastName\"`\n}\n\nvar (\n\tpersonType = graphql.NewObject(graphql.ObjectConfig{\n\t\tName: \"Person\",\n\t\tDescription: \"A person in the system\",\n\t\tFields: graphql.Fields{\n\t\t\t\"id\": &graphql.Field{\n\t\t\t\tType: graphql.Int,\n\t\t\t},\n\t\t\t\"firstName\": &graphql.Field{\n\t\t\t\tType: graphql.String,\n\t\t\t},\n\t\t\t\"lastName\": &graphql.Field{\n\t\t\t\tType: graphql.String,\n\t\t\t},\n\t\t},\n\t})\n\n\tfields = graphql.Fields{\n\t\t\"person\": &graphql.Field{\n\t\t\tType: personType,\n\t\t\tDescription: \"Get Person By ID\",\n\t\t\tArgs: graphql.FieldConfigArgument{\n\t\t\t\t\"id\": &graphql.ArgumentConfig{\n\t\t\t\t\tType: graphql.Int,\n\t\t\t\t},\n\t\t\t},\n\t\t\tResolve: func(params graphql.ResolveParams) (interface{}, error) {\n\t\t\t\t_ = plugins.GetGraphqlContext(params)\n\t\t\t\tid, ok := params.Args[\"id\"].(int)\n\t\t\t\tif ok {\n\t\t\t\t\ttestPeopleData := []Person{\n\t\t\t\t\t\t{Id: 1, FirstName: \"John\", LastName: \"Doe\"},\n\t\t\t\t\t\t{Id: 2, FirstName: \"Jane\", LastName: \"Doe\"},\n\t\t\t\t\t}\n\t\t\t\t\tfor _, p := range testPeopleData {\n\t\t\t\t\t\tif p.Id == id {\n\t\t\t\t\t\t\treturn p, nil\n\t\t\t\t\t\t}\n\t\t\t\t\t}\n\t\t\t\t}\n\t\t\t\treturn nil, nil\n\t\t\t},\n\t\t},\n\t}\n\n\trootQuery = graphql.ObjectConfig{Name: \"RootQuery\", Fields: fields}\n\n\tChatGPT_schema, _ = graphql.NewSchema(graphql.SchemaConfig{Query: graphql.NewObject(rootQuery)})\n)\n" } ] }, // 上传钩子 "upload": { "preUpload": "package $PROFILE_NAME$\n\nimport (\n\t\"custom-go/generated\"\n\t\"custom-go/pkg/base\"\n\t\"custom-go/pkg/plugins\"\n)\n\nfunc PreUpload(request *base.UploadHookRequest, body *plugins.UploadBody[generated.^$STORAGE_NAME$_$PROFILE_NAME$ProfileMeta]) (*base.UploadHookResponse, error) {\n\treturn &base.UploadHookResponse{FileKey: body.File.Name}, nil\n}\n", "postUpload": "package $PROFILE_NAME$\n\nimport (\n\t\"custom-go/generated\"\n\t\"custom-go/pkg/base\"\n\t\"custom-go/pkg/plugins\"\n)\n\nfunc PostUpload(request *base.UploadHookRequest, body *plugins.UploadBody[generated.^$STORAGE_NAME$_$PROFILE_NAME$ProfileMeta]) (*base.UploadHookResponse, error) {\n\treturn nil, nil\n}\n" } } ``` ### 引入钩子 不同语言引入钩子文件的方式不同，但都会动态生成一个入口文件，引入所有的钩子文件。 {% tabs %} {% tab title="golang" %} {% code title="custom-go/server/fireboom\_server.go" %} ```go package server import ( "custom-go/global" "github.com/joho/godotenv" "custom-go/auth" "custom-go/generated" // 引入 OPERATION钩子 hooks_Single "custom-go/hooks/Single" hooks_Weather "custom-go/hooks/Weather" "custom-go/pkg/base" "custom-go/pkg/plugins" "custom-go/pkg/types" // 引入 文件上传钩子 uploads_tengxunyun_avatar "custom-go/uploads/tengxunyun/avatar" uploads_fireboom_avatar "custom-go/uploads/fireboom/avatar" // 引入 graphql钩子 "custom-go/customize" _ "custom-go/proxys" ) const nodeEnvFilepath = "../.env" func init() { _ = godotenv.Overload(nodeEnvFilepath) types.WdgHooksAndServerConfig = types.WunderGraphHooksAndServerConfig{ Hooks: types.HooksConfiguration{ Global: plugins.GlobalConfiguration{ HttpTransport: plugins.HttpTransportHooks{ BeforeOriginRequest: global.BeforeOriginRequest, OnOriginRequest: global.OnOriginRequest, OnOriginResponse: global.OnOriginResponse, }, WsTransport: plugins.WsTransportHooks{}, }, Authentication: plugins.AuthenticationConfiguration{ MutatingPostAuthentication: auth.MutatingPostAuthentication, }, Queries: base.OperationHooks{ "Single": { PreResolve: plugins.ConvertBodyFunc[generated.SingleInternalInput, generated.SingleResponseData](hooks_Single.PreResolve), }, "Weather": { CustomResolve: plugins.ConvertBodyFunc[generated.WeatherInternalInput, generated.WeatherResponseData](hooks_Weather.CustomResolve), PostResolve: plugins.ConvertBodyFunc[generated.WeatherInternalInput, generated.WeatherResponseData](hooks_Weather.PostResolve), }, }, Mutations: base.OperationHooks{}, Subscriptions: base.OperationHooks{}, Uploads: map[string]plugins.UploadHooks{ "tengxunyun": { "avatar": { PreUpload: plugins.ConvertUploadFunc[generated.Tengxunyun_avatarProfileMeta](uploads_tengxunyun_avatar.PreUpload), PostUpload: plugins.ConvertUploadFunc[generated.Tengxunyun_avatarProfileMeta](uploads_tengxunyun_avatar.PostUpload), }, }, "ali": {}, "fireboom": { "avatar": { PreUpload: plugins.ConvertUploadFunc[generated.Fireboom_avatarProfileMeta](uploads_fireboom_avatar.PreUpload), }, }, }, }, GraphqlServers: []plugins.GraphQLServerConfig{ { ApiNamespace: "Custom", ServerName: "Custom", EnableGraphQLEndpoint: true, Schema: customize.Custom_schema, }, }, } } ``` {% endcode %} {% endtab %} {% endtabs %} ### 注册路由 引用入口文件的变量，注册各种钩子的路由。 {% tabs %} {% tab title="golang" %} {% code title="server/start.go" %} ```go // 注册proxy钩子 plugins.RegisterProxyHooks(e) // 注册全局钩子 plugins.RegisterGlobalHooks(e, types.WdgHooksAndServerConfig.Hooks.Global) // 注册授权钩子 plugins.RegisterAuthHooks(e, types.WdgHooksAndServerConfig.Hooks.Authentication) // 注册上传钩子 plugins.RegisterUploadsHooks(e, types.WdgHooksAndServerConfig.Hooks.Uploads) var internalQueries, internalMutations base.OperationDefinitions nodeUrl := utils.GetConfigurationVal(types.WdgGraphConfig.Api.NodeOptions.NodeUrl) queryOperations := filterOperationsHooks(types.WdgGraphConfig.Api.Operations, wgpb.OperationType_QUERY) // 注册局部钩子 if queryLen := len(queryOperations); queryLen > 0 { internalQueries = plugins.BuildInternalRequest(e.Logger, nodeUrl, queryOperations) plugins.RegisterOperationsHooks(e, queryOperations, types.WdgHooksAndServerConfig.Hooks.Queries) e.Logger.Debugf(`Registered (%d) query operations`, queryLen) } mutationOperations := filterOperationsHooks(types.WdgGraphConfig.Api.Operations, wgpb.OperationType_MUTATION) if mutationLen := len(mutationOperations); mutationLen > 0 { internalMutations = plugins.BuildInternalRequest(e.Logger, nodeUrl, mutationOperations) plugins.RegisterOperationsHooks(e, mutationOperations, types.WdgHooksAndServerConfig.Hooks.Mutations) e.Logger.Debugf(`Registered (%d) mutation operations`, mutationLen) } subscriptionOperations := filterOperationsHooks(types.WdgGraphConfig.Api.Operations, wgpb.OperationType_SUBSCRIPTION) if subscriptionLen := len(subscriptionOperations); subscriptionLen > 0 { plugins.RegisterOperationsHooks(e, subscriptionOperations, types.WdgHooksAndServerConfig.Hooks.Subscriptions) e.Logger.Debugf(`Registered (%d) subscription operations`, subscriptionLen) } // 注册内部调用钩子 plugins.BuildDefaultInternalClient(internalQueries, internalMutations) for _, registeredHook := range base.GetRegisteredHookArr() { go registeredHook(e.Logger) } // 注册graphql钩子 for _, gqlServer := range types.WdgHooksAndServerConfig.GraphqlServers { plugins.RegisterGraphql(e, gqlServer) } ``` {% endcode %} {% endtab %} {% endtabs %} ## 启动钩子 ### 启动服务 不同语言启动服务的方式不同，但一般都需要先安装依赖，再启动服务。 {% tabs %} {% tab title="golang" %} ```bash # 1.安装依赖 go mod tidy # 2.启动服务 go run main.go ``` {% endtab %} {% tab title="nodejs" %} ```bash # 1.安装依赖 npm install # 2.运行服务 npm run watch ``` {% endtab %} {% endtabs %} 启动服务后，可通过健康检查接口，检测服务是否成功启动！ ### 健康检查 健康检查接口，Fireboom服务**每秒触发1次**，主要用途如下： * 检查钩子服务健康状态，在界面上展示钩子是否已启动，见底部 状态栏-> 钩子 状态。 * 返回钩子服务上注册的3种自定义钩子：[graphql钩子](https://docs.fireboom.io/jin-jie-gou-zi-ji-zhi/graphql-gou-zi)、[function](https://docs.fireboom.io/jin-jie-gou-zi-ji-zhi/han-shu-gou-zi/zu-he-shi-api)、[proxy](https://docs.fireboom.io/jin-jie-gou-zi-ji-zhi/han-shu-gou-zi/proxys-fei-qi)，Fireboom服务检查到钩子状态变化后，刷新控制台API管理和数据源列表 ```http http://{serverAddress}/health # Example:: http://localhost:9992/health Content-Type: application/json X-Request-Id: "83821325-9638-e1af-f27d-234624aa1824" # JSON request no data # JSON response { // 3种类型的自定义钩子，用于触发编译 "report": { // graphql 钩子 "customizes": [ "statistic" ], // function 钩子 "functions": [ "login", "test", "hello" ], // proxy 钩子 "proxys": [ "test" ], "time": "2023-09-06T17:18:21.957519+08:00" }, // 钩子服务的状态 "status": "ok" } ``` {% tabs %} {% tab title="golang" %} ```go // 健康检查 e.GET("/health", func(c echo.Context) error { return c.JSON(http.StatusOK, map[string]interface{}{ "status": "ok", "report": healthReport, }) }) ``` {% endtab %} {% endtabs %}
